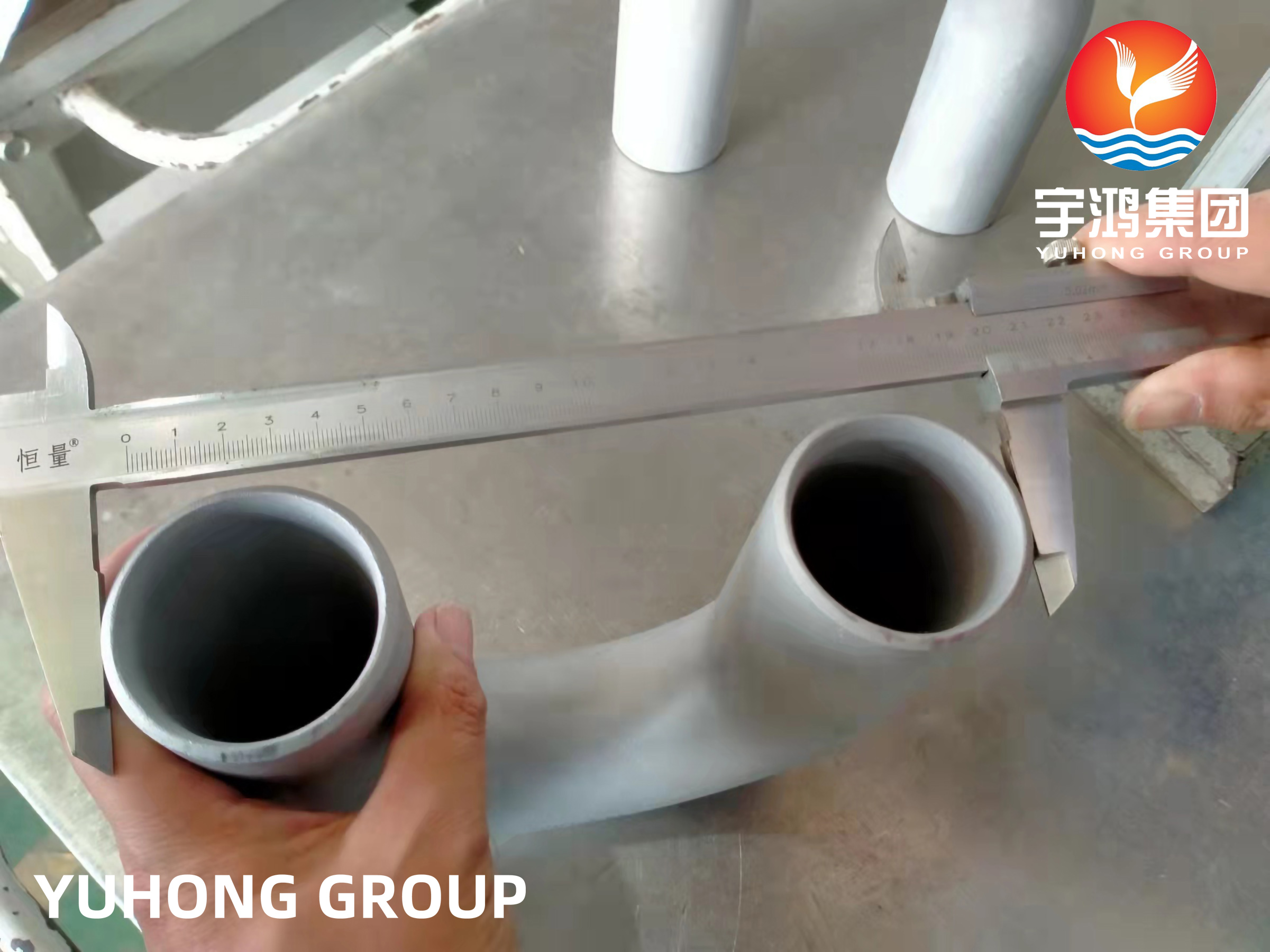

ASTM A815 WP-S UNS S32205 Duplex Stainless Steel Pipe Fittings 180 Deg U Bend B16.9
ASTM A815 UNS S32205 Duplex Stainless Steel Pipe U Bend is mainly composed of chromium, nickel and molybdenum. It also contains some elements of manganese, nitrogen, silicon and iron. With 22% chromium, 5% nickel and 3% molybdenum, this type of steel is considered as a duplex stainless steel having excellent corrosion resistance due to its high alloy composition. Its has higher strength than ordinary stainless steels and it also has superior resistance to stress corrosion cracking in chloride-containing media.
Specifications: ASTM A815 & ASME SA815
Grades: Duplex S31803, S32205
Dimensions: ASME/ANSI B16.9 / B16.28 and MSS SP-43 / SP-75
Size: 1/2” – 48”
Outer Diameter: 38 mm – 206 mm or as customed
Wall Thickness: 1.5 mm - 3 mm or as customed
Bend Radii: 75mm -1500 mm
Bending Radius: R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Bending angle: 45°, 90°,180°
| Specifications | ASTM A815 / ASME SA815 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Grades | UNS S31803, S32205 |
| Size | 1/2” to 48” |
| Type | Seamless / Welded / Fabricated |
| Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
Chemical Propeties:
| Carbon | ≤0.03 |
| Manganese | ≤2 |
| Silicon | ≤1 |
| Phosphate | ≤0.03 |
| Sulfur | ≤0.02 |
| Chromium | 21-23 |
| Nickel | 4.5-6.5 |
| Molybdenum | 2.5-3.5 |
| Nitrogen | 0.08-0.2 |
Mechanical Properties:
| Tensile Strength, Ksi | 90 min |
| 0.2% Yield Strength, Ksi | 65 min |
| Elongation, % | 25 min |
| Hardness [HRC] | 293 max |
Product Usage & Applications:
Chemical Refinery
Water Pipe Line
Nuclear Power Plants
Paper & Pulp Companies
High Pressure Applications
Boiler & Heat Exchangers
Food Processing and Dairy Industries
Oil and Gas Plants
Water Treatment Systems
