Heat Exchanger Parts, ASTM A182 F316L, 1.4404 Stainless Steel Forged Tubesheets

Brand Name : YUHONG

Model Number : ASTM A182 F316L, 1.4404, UNS S31603

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Place of Origin : China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : According To Clients' Request

Delivery Time : 10-90 Work Days

Packaging Details : Ply-wooden Case

Standard : ASTM A182, ASME SA182

Masterial Grade : F316L, 1.4404, UNS S31603

Product Name : Stainless Steel Tubesheets

Sizes : As Per Client's Drawing

Technics : Forged

Applications : Heat Exchanger, Boiler, Petroleum, Condenser, Etc.

Contact Now

Heat Exchanger Parts, ASTM A182 F316L, 1.4404 Stainless Steel Forged Tubesheets

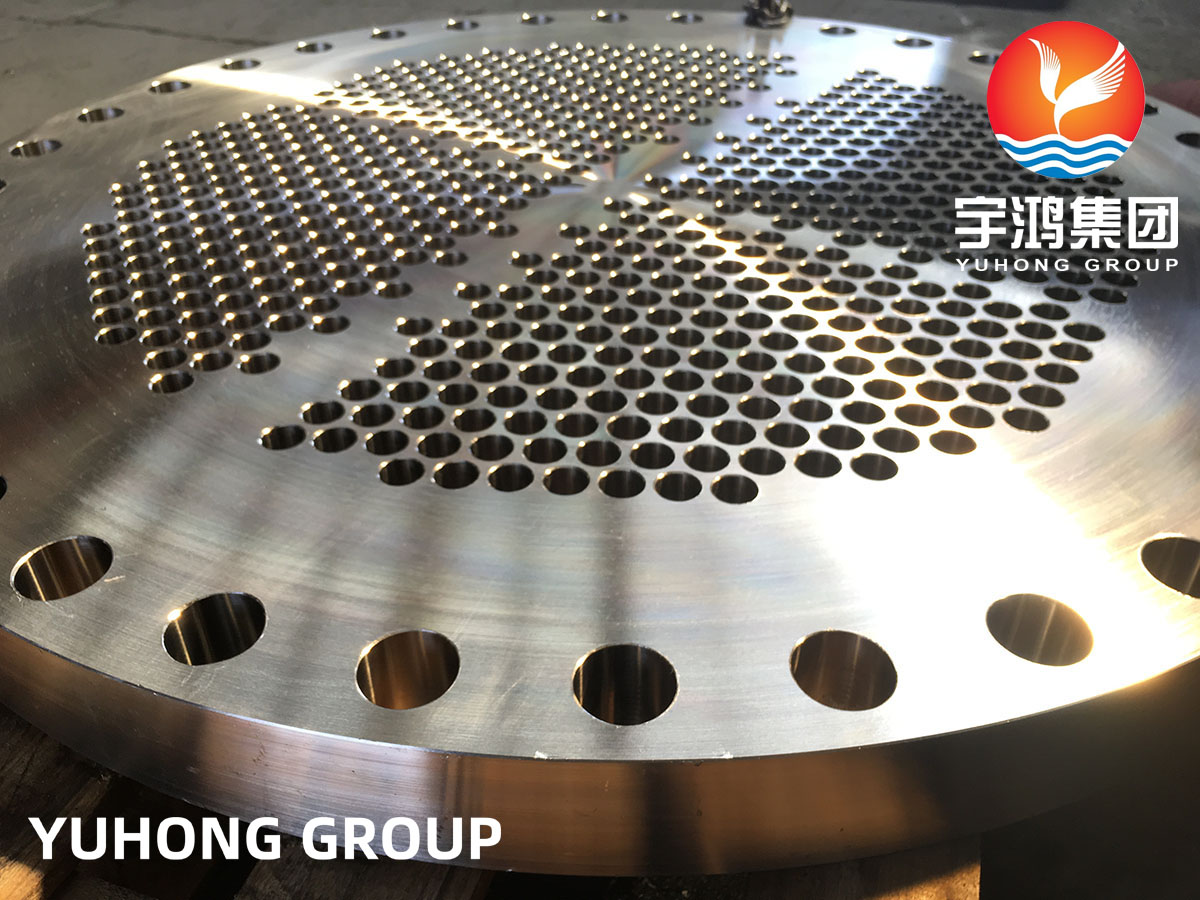

Tubesheets are one of the most important components of Shell and Tube Heat Exchangers. Stainless steel forged tubesheets are usually made from a round flat piece of forged plate which are made with holes drilled for the tube ends in a precise location and pattern relative to one another. Tube holes can be drilled and reamed and can be machined with one or more grooves which increases the strength of the tube joint.

ASTM A182 F316L stainless steel is ideal for tubesheets in applications where corrosion resistance, high-temperature strength, and resistance to chemicals and acids are important. SS316L material is commonly used in environments involving exposure to chlorides, which can cause corrosion in regular stainless steels.

Equivalent Grades:

GRADE WERKSTOFF NR./ DIN UNS JIS BS GOST AFNOR EN
SS316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3

Heat Exchanger Parts, ASTM A182 F316L, 1.4404 Stainless Steel Forged Tubesheets

Chemical Composition:

C(Max) Si(Max) Mn(Max) P(Max) S(Max) Ni Cr N(Max) Mo
0.03 0.75 2.00 0.045 0.03 10.0–14.0 16.0–18.0 0.1 2.00–3.00

Mechanical Properties:

Density Melting Range Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1399 °C (2550 °F) 75000 Psi, 515 MPa 30000 Psi, 205 MPa 35 %

Applications:

Petrochemical Industry

Pharmaceutical Industry

Food Industry

Aviation and Aerospace Industry

Architectural Decoration Industry

Oil and Gas Industry

Heat Exchanger Parts

Heat Exchanger Parts, ASTM A182 F316L, 1.4404 Stainless Steel Forged Tubesheets
