ASME SA240 SS321 Stainless Steel Heat Exchanger Elliptical Heads

Brand Name : YUHONG

Model Number : ASME SA512

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Place of Origin : CHINA

MOQ : 1PC

Price : 1-150000 USD

Payment Terms : T/T, L/C

Supply Ability : 500pcs/month

Delivery Time : 30-60 days

Packaging Details : Standard Export Package

Product : Elliptical Heads

Standard : ASME SA240

Material : Stainless Steel

Grade : SS321

Use : Heater Parts,Heat Exchanger, Condenser, Boiler

Size : As Per Client's Drawing

Key Words : Pressure containing parts; Pressure vessel steel; etc

Packing : Standard Export Package

Contact Now

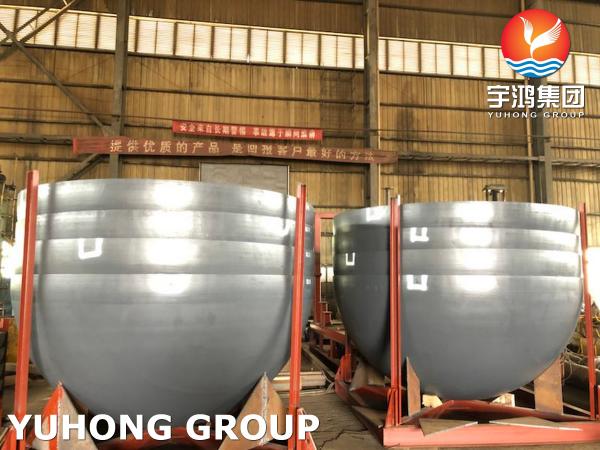

ASME SA240 321 Stainless Steel Heat Exchanger Elliptical Heads

YUHONG Group produce variety of heat exchanger heads according to the drawing of clients, products of many materials, such as of carbon steel, stainless steel, alloy steel! We can do many projects: heat exchanger / boiler projects, marine projects, oil & gas projects etc.

This page is about ASME SA240 SS321 stainless steel elliptical heads. Elliptical heads are curved components used in pressure vessels and storage tanks to form the ends of the vessel. The shape of this head is more economical, because the height of the head is just a fraction of the diameter. Its radius varies between the major and minor axis; usually the ratio is 2:1.

ASME SA240 This specification covers chromium, chromium-nickel, and chromium-manganese-nickel stainless steel plate, sheet, and strip for pressure vessels and for general applications including architectural, building, construction, and aesthetic applications

Chemical Composition (%)

C Mn P S Si Cr Ni N Others
0.08 2 0.045 0.03 0.75 17-19 9-12 0.1 Ti 5 × (C + N) min, 0.70 max

Mechanical Properties

Tensile Strength,min Yield StrengthB,min Elongation Hardness,maxC
75ksi, 515MPa 30ksi, 205MPa 40% Brinell HBW 217 Rockwell 95HRBW

Application

Pressure Vessels

Storage Tanks

Heat Exchanger

Boiler,etc
