EN10222-4 P280GH, 1.0426 Carbon Steel Tubesheet For Shell And Tube Heat Exchangers
EN10222-4 is a European standard that specifies requirements for steel forgings for pressure purposes. P280GH is one of the materials covered by this standard. It is a non-alloy quality steel with elevated temperature properties. The "P" stands for pressure, and the number "280" indicates the minimum yield strength in megapascals (MPa).
A tubesheet is a component used in heat exchangers and boilers that holds the tubes in place. It is an important part of the structure as it provides support and facilitates the exchange of heat between the tubes and the surrounding fluid.
Commonly Used Materials:
Carbon steel: ASTM A350 LF2; ASTM A105, Q235, Q355D; ASTM A694 F52; ASTM A516 GR65; EN10222 P280GH, P245GH, etc
Stainless steel: ASTM A182 F304/304L, F316/316L, F316H, F310, F321, S31803, S32205, S32750, S32760, F904L, 254SMO, etc
Titanium Alloy: ASTM B381 GR F1, GR F2, GR F3, GR F5, GR F7, GR F12, ASTM B265 GR1, GR2, GR3, GR5, GR7, GR12, etc...
Copper Alloy: ASME SB171 C70600, C71500, C46400, C46500, C41300, etc.
| Ferritic and Martensitic Steels | Specification |
| 11CrMo9-10 | W.Nr. 1.7383 | EN 10222 |
| 13CrMo4-5 | W.Nr. 1.7335 |
| 16Mo3 | W.Nr. 1.5415 |
| X16CrMn5-1 | W.Nr. 1.7366 |
| X10CrMoVNb9-1 | W.Nr. 1.4903 |
| X20CrMoV11-1 | W.Nr. 1.4922 |
| P245GH | W.Nr. 1.0352 |
| P250GH | W.Nr. 1.0460 |
| P280GH | W.Nr. 1.0426 |
| P305GH | W.Nr. 1.0436 |
Chemical Composition%:
| C | Si | Mn | P | S |
| 0.08-0.20 | 0.40max | 0.90-1.50 | 0.025 | 0.015 |
Mechanical Properties:
| Yield Strength ReH N/mm2 | 280 min |
| Tensile Strength Rm N/mm2 | 460 - 580 |
| Elongation | 23% min |
Applications:
Shell And Tube Heat Exchanger
Petrochemical Industry
Avation and Aerospace Industry
Pharmaceutical Industry
Gas Exhaust Plant
Power Generation Plant
Ship Building Equipment
Water Treatment System
|
|

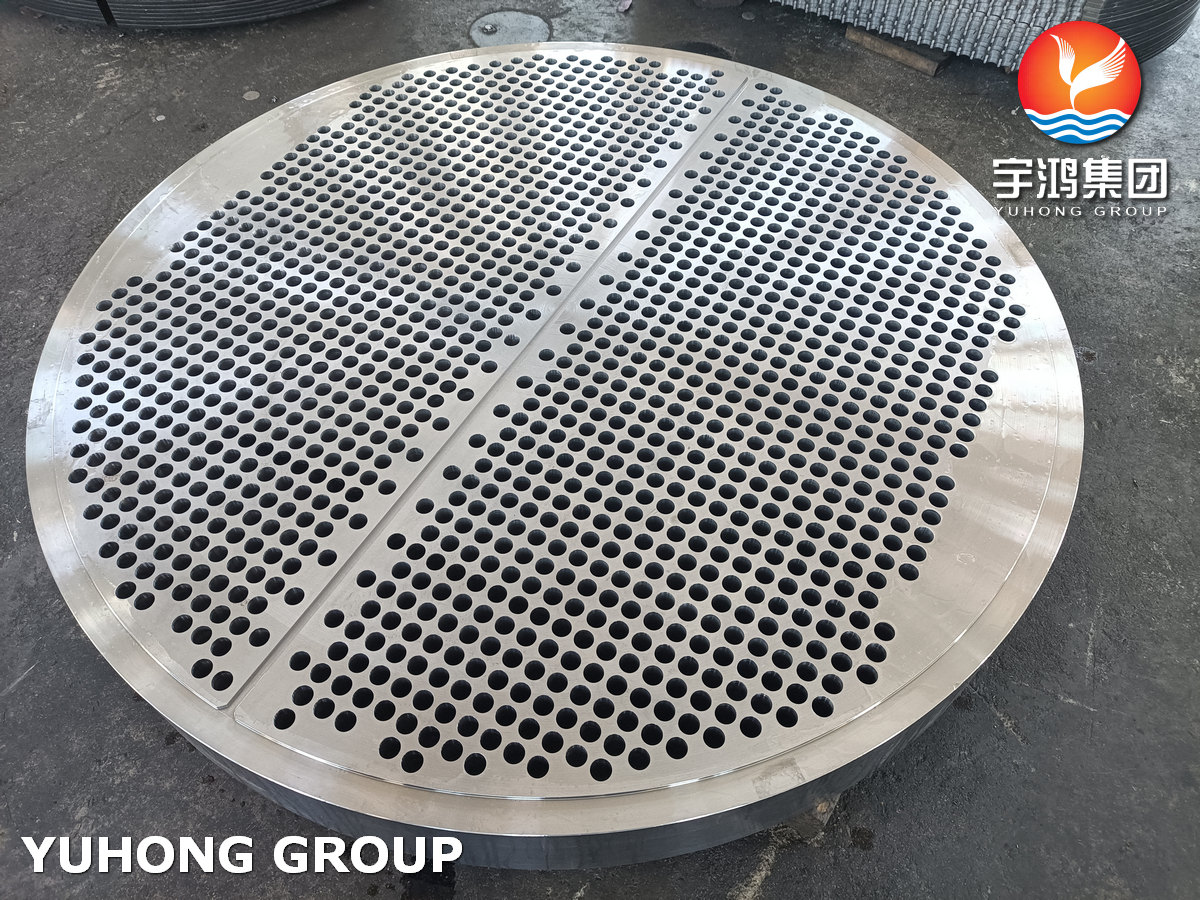

EN10222-4 P280GH, 1.0426 Carbon Steel Tubesheet For Shell And Tube Heat Exchangers Images
|
