ASTM A182 F317, F317L Stainless Steel Blind Raised Face Flange ANSI B16.5

Brand Name : YUHONG

Model Number : F317, F317L

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Place of Origin : China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : According to Client's Requirements

Delivery Time : 5-60 Days

Packaging Details : Ply-Wooden Case/ Pallet

Standard : ASTM A182, ASME SA182

Material Grade : F317, F317L

Product Name : Stainless steel flange

Pressure : Class150/300/600/9001500/2500

Type : Blind Flange,Threaded Flange,Slip on Flange,Socket Weld Flange,Weld Neck Flange,LAP Joint Flange

Applications : Petroleum,chemical,fittings and connection

Contact Now

ASTM A182 F317, F317L Stainless Steel Blind Raised Face Flange ANSI B16.5

ASTM A182 is a standard for Forged Alloy Steel Pipe Flanges, Forged Fittings, Valves as well as parts. The components for A182 F317/F317L Material have been designed to be used for High Temperature applications. ASTM A182 F317 and F317L Flanges are a low carbon austenitic, stainless steel grade. The major non-ferrous materials used in F317 or F317L include chromium, nickel & molybdenum, etc..

The high levels of elements like chromium, nickel & molybdenum, assure that the F317 / F317L Stainless Steel Flanges have superior resistance to chloride pitting and general corrosion. The ASTM A182 F317, F317L Flanges have improved resistance relative to 316L, especially in those environments which contain strongly corrosive chemicals.

Specifications ASTM A182, ASME SA182
Standards ANSI, ASME, DIN, EN, BS, JIS, AWWA etc.
Dimensions ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS10, EN-1092, DIN, etc.
Size Range 1/2" to 48"
Pressure / Class 150#, 300#, 600#, 900#, 1500#, 2500#.
Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Features:

High corrosion resistance

Sustain high pressure & temperature load

Lower intergranular precipitation

Excellent stress distribution

Good high temperature oxidation resistance

ASTM A182 F317, F317L Stainless Steel Blind Raised Face Flange ANSI B16.5

Material Equivalent:

STANDARD UNS WERKSTOFF NR. JIS EN
F317 S31700 1.4449 SUS 317 –
F317L S31703 1.4438 SUS 317L X2CrNiMo18-15-4

Chemical Composition:

Grade Si Cr Mo P C Mn S Ni Fe
F317 1 max 18 – 20 3 – 4 0.045 max 0.08 max 2 max 0.03 max 11 – 15 57.845 min
F317L 1 max 18 – 20 3 – 4 0.045 max 0.035 max 2 max 0.03 max 11– 15 57.89 min

Mechanical Properties:

Density 7.9 g/cm3
Melting Point 1400 °C (2550 °F)
Tensile Strength Psi – 75,000 , MPa – 515
Yield Strength (0.2%Offset) Psi – 30,000 , MPa – 205
Elongation 35 %

Applications:

Plumbing

Boiler & Heat Exchangers

Oil and Gas Pipeline

Chemical Industry

Water Supply Systems

Power Plant

Paper & Pulp Industry

Food Processing Industry

ASTM A182 F317, F317L Stainless Steel Blind Raised Face Flange ANSI B16.5


Product Tags:

ANSI B16.5 Stainless Steel Flange



F317L Stainless Steel BLRF Flange



Petroleum Chemical BLRF Flange


Quality ASTM A182 F317, F317L Stainless Steel Blind Raised Face Flange ANSI B16.5 wholesale

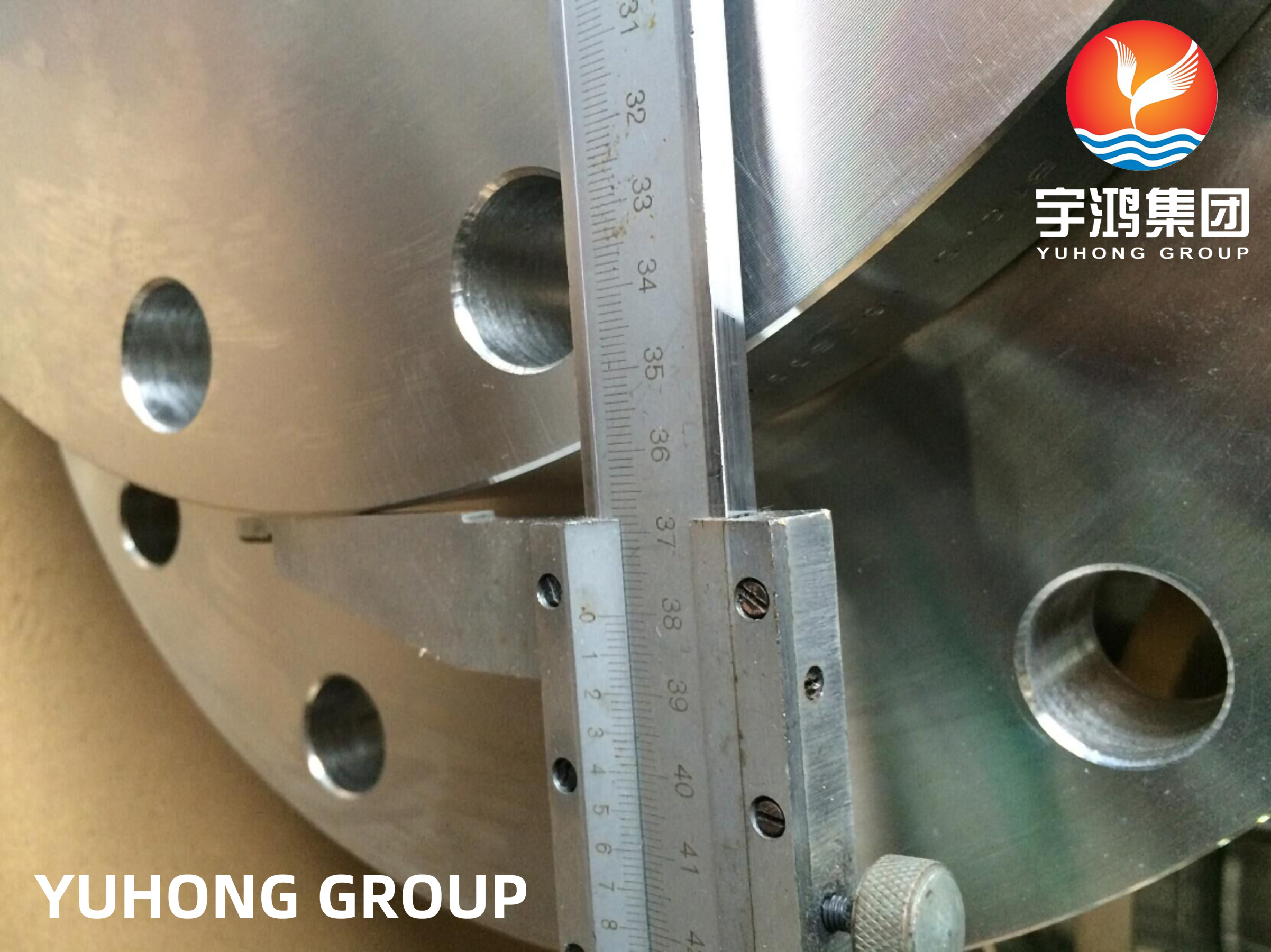

ASTM A182 F317, F317L Stainless Steel Blind Raised Face Flange ANSI B16.5 Images
