ASTM A182 F321H WNRF Stainless Steel Flanges Bridas

Name: ASTM A182 F321H WNRF Stainless Steel Flanges Bridas
Brand: YUHONG
Price: 1 USD

Quality ASTM A182 F321H WNRF Stainless Steel Flanges Bridas wholesale

Brand Name : YUHONG

Model Number : ASTM A182 F321H

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Place of Origin : CHINA

MOQ : 2 PC

Price : 1-100000 USD

Payment Terms : T/T, L/C

Supply Ability : 1000 tons/month

Delivery Time : 10-50days

Packaging Details : Ply-wooden Case /Iron Case/ Bundle with plastic Cap

Product : Flanges

Standard : ASTM A182

Material : Stainless Steel

Grade : F321H

Type : Blind/ Threaded /Slip On /Socket Welded/ Welding Neck/ Lap Joint Flange

Process : Forged, Drilling/Bending/Stamping, Casting, Heating Treament

Contact Now

STM A182 F321H WNRF Stainless Steel Flanges Bridas

YUHONG supplies ASTM A182 F321H Stainless Steel Flanges.

ASTM A182 this specification covers forged low alloy and stainless steel piping components for use in pressure systems.

ASTM A182 F321H Flanges are made by bolting together two flanges with a gasket between them to provide a seal. It is an austenitic material which can be stabilized by the addition of Titanium and can be usually utilized for applications in temperatures up to 1,650 ℉. Also, F321 WN Flanges is an excellent choice for various applications ranging from oil refinery equipment to automative exhaust systems.

ASTM A182 F321H WNRF Stainless Steel Flanges Bridas

Specification Of ASTM A182 F321H

Technique Use in Forging	Forged, Machined and Heat Treated
Types	WN Flange / SW Flange / Blind Flange / SO Flange / Plate Flange,etc
Size	1/2″ to 48″NB
Class / Pressure	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Flange Delivery Condition	As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T, Machined
Flange Dimension Standard	Standard - ANSI - ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, and ANSI B16.48
Other Testing	Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC
Coating Flanges Face	Zinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint
Flange Packaging	Ply-wooden Case /Iron Case/ Bundle with plastic Cap

Chemical Composition Of ASTM A182 F321H

ELEMENT	COMPOSITION (%)
Carbon	0.04-0.10
Manganese	2.00 max
Phosphorus	0.045 max
Sulfur	0.03 max
Silicon	1.00 max
Nickel	9.0-12.0
Chromium	17.0-19.0

Mechanical Properties Of ASTM A182 F321H

Grade	Density	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
F321H	7.9 g/cm3	MPa – 515	MPa – 205	30%

Applications

Food processing & Manufacturing

Petrochemical industry

Power generation

Natural gas Industry

Oil and gas industry

Waterworks & Manufacturing

ASTM A182 F321H WNRF Stainless Steel Flanges Bridas

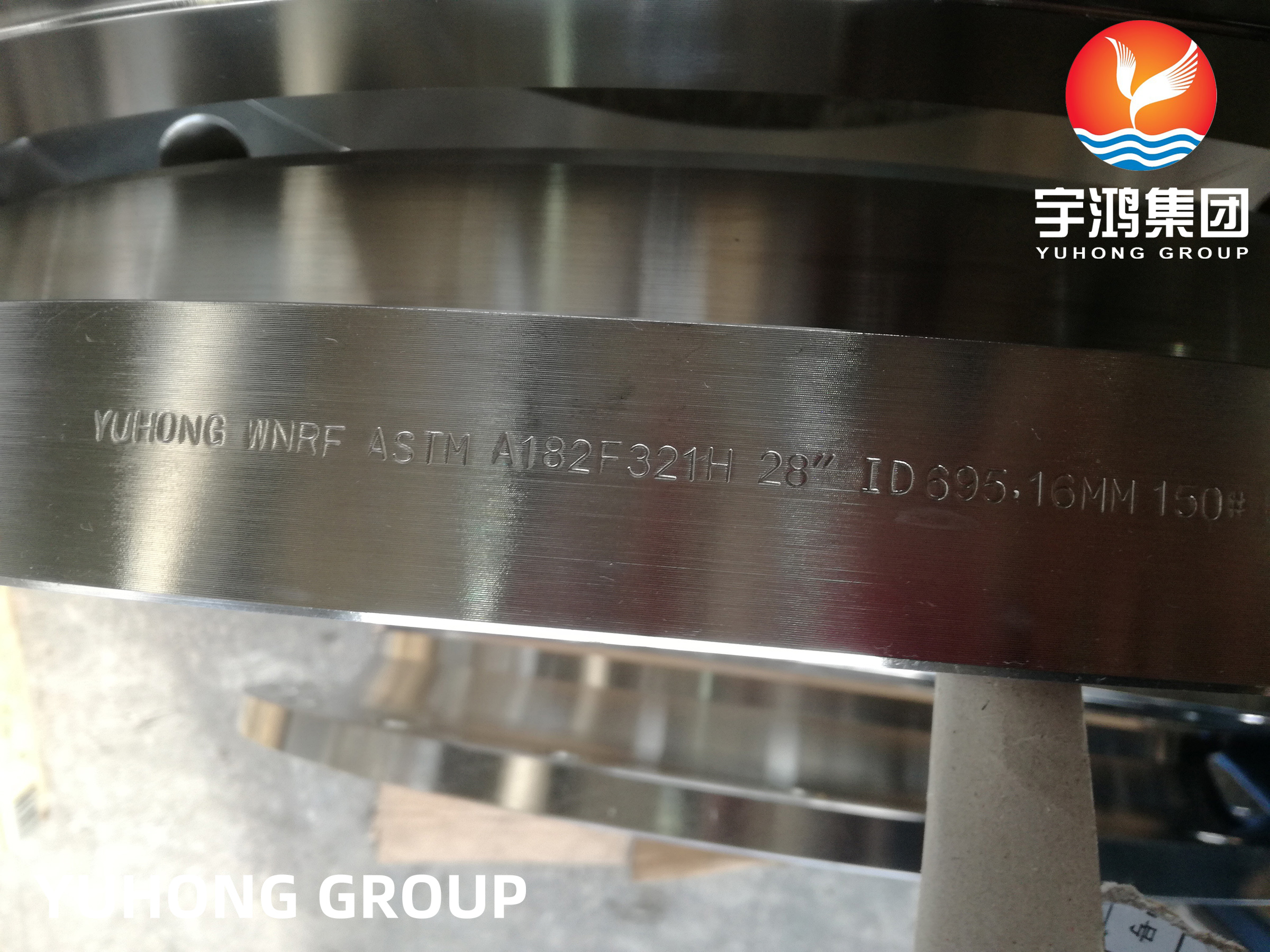

ASTM A182 F321H WNRF Stainless Steel Flanges Bridas Images
