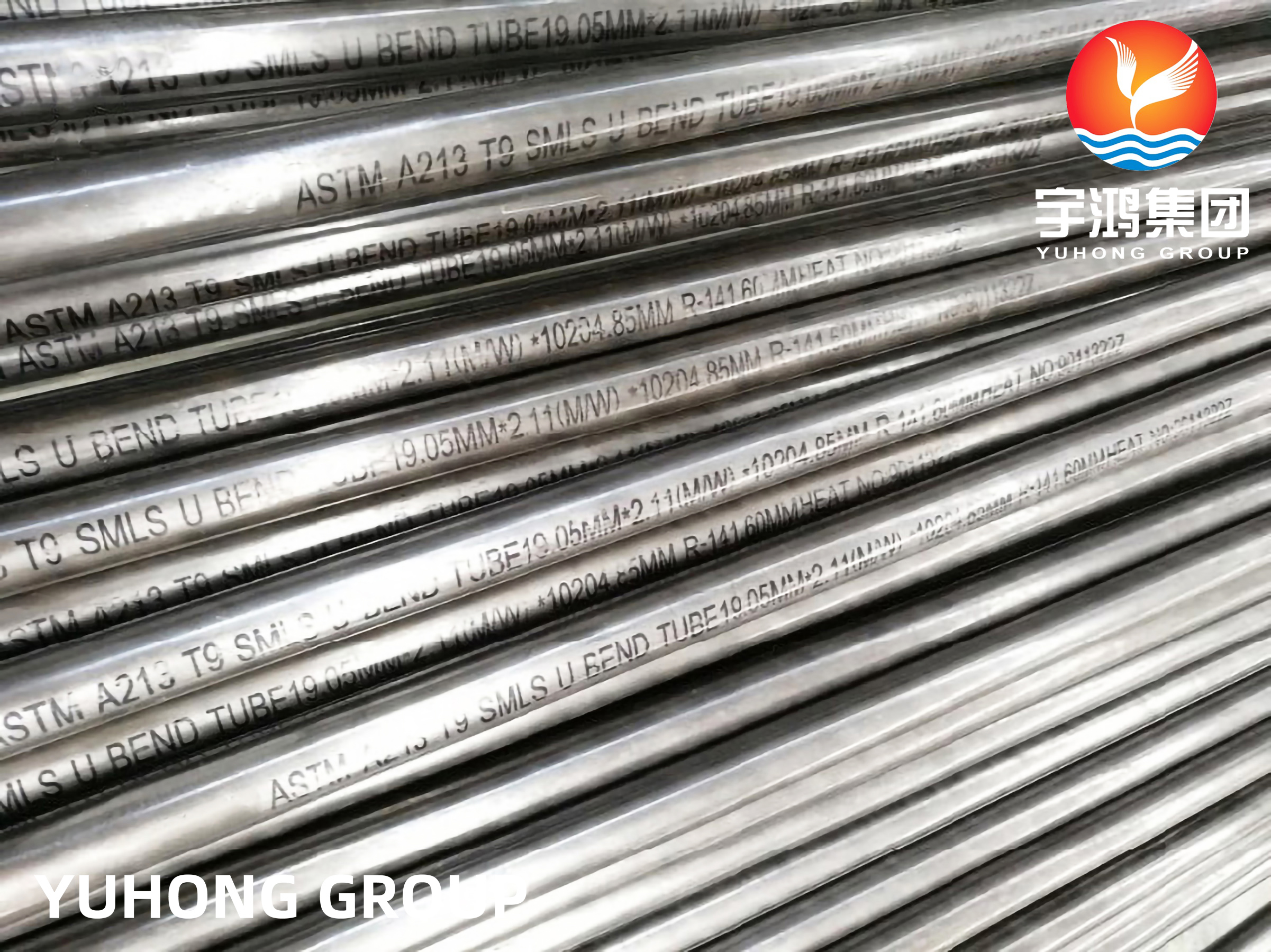

ASTM A213 T9 U BEND TUBE OIL COATED ALLOY STEEL BOILER TUBING
Yuhong Group supply Boiler tube , Heat Exchange Tube, Air Cooling Tube , Condenser Tube more than 32 years , and our material grade contain Stainless Steel , Duplex Steel , Super Duplex Steel , Hastelloy , Monel , Inconel , Incoloy , Cr-Mo alloy , Copper alloy steel , and very year sell more than 80000 tons pipes and tubes to our client projects. And up to now we already export more than 55 countries. The pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.
ASME SA213 T9 tube is made up of a low carbon alloy steel that is suitable for high heat and high pressure applications like the chemical, power generation, petroleum and oil and gas industrial applications. The ASTM A213 T9 Tube is also used in the water supply, metallurgy, construction and ship building applications which require strong material. Multi Metals (India) is a leading manufacturer and supplier of the A213 T9 Material made products in different dimensions and shapes.
The outer diameter of the tubes ranges from 6.35mm to 101.6mm and the wall thickness of the tubes range from 1mm to 12mm. The specification ASTM A213 covers the tubes for pressure vessel class applications. The schedules of the A213 T9 Tubing range from sch40 through XXS and all schedules. The tubes are all made in seamless conditions with varying lengths up to 12m. The ASTM A213 Gr T9 Tube different end types to fit in different applications such as the plain end, beveled end and threaded ends.
Mechanical Property of T9
| Steel Grade | Tensile Strength, Mpa | Yield Strength, Mpa | Elongation, % |
| ASTM A213 T5 | Min: 415 | Min: 205 | Min: 30 |
| ASTM A213 T9 | Min: 415 | Min: 205 | Min: 30 |
| ASTM A213 T11 | Min: 415 | Min: 205 | Min: 30 |
| ASTM A213 T12 | Min: 415 | Min: 205 | Min: 30 |
| ASTM A213 T22 | Min: 415 | Min: 205 | Min: 30 |
| ASTM A213 T91 | Min: 415 | Min: 415 | Min: 20 |
Chemical Composition of T9
| Steel Grade |
| C | Mn | P | S | Si | Cr | Mo | V |
| ASTM A213 T5 | Max: 0.15 | 0.30 - 0.60 | Max: 0.025 | Max: 0.025 | Max: 0.50 | 4.00 - 6.00 | 0.45 - 0.65 | -- |
| ASTM A213 T9 | Max: 0.15 | 0.30 - 0.60 | Max: 0.025 | Max: 0.025 | 0.25 - 1.00 | 8.00 - 10.00 | 0.90 - 1.10 | -- |
| ASTM A213 T11 | 0.05 - 0.15 | 0.30 - 0.60 | Max: 0.025 | Max: 0.025 | 0.50 - 1.00 | 1.00 - 1.50 | 0.44 -0.65 | -- |
| ASTM A213 T12 | 0.05 - 0.15 | 0.30 - 0.61 | Max: 0.025 | Max: 0.025 | Max: 0.50 | 0.80 - 1.25 | 0.44 - 0.65 | -- |
| ASTM A213 T22 | 0.05 - 0.15 | 0.30 - 0.60 | Max: 0.025 | Max: 0.025 | Max: 0.50 | 1.90 - 2.60 | 0.87 - 1.13 | -- |
| ASTM A213 T91 | 0.08 - 0.12 | 0.30 - 0.60 | Max: 0.020 | Max: 0.010 | 0.20 - 0.50 | 8.00 - 9.50 | 0.85 - 1.05 | 0.18 - 0.25 |
| Cb: 0.06 - 0.1 | N: 0.030 - 0.070 | Ni: Max: 0.40 | Al: Max0.04 | Ti: Max: 0.01 | Zr: Max 0.01 | | |
| Trade Name | Grade | UNS # | Heater Tubes |
| 1 1/4 Chrome | T11 | K11597 | A213 / SA213 |
| 2 1/4 Chrome | T22 | K21590 | A213 / SA213 |
| 5 Chrome | T5 | K41545 | A213 / SA213 |
| 9 Chrome | T9 | K90941 | A213 / SA213 |
| T91 | T91 | K90901 | A213 / SA213 |
| T92 | T92 | K92460 | A213 / SA213 |
Some of the quality tests carried out by us includes
| Corrosion Test | Conducted only when specially requested by the client |
| Chemical Analysis | Test done as per required quality standards |
| Destructive / Mechanical Testing | Tensile | Hardness | Flattening | Flare | Flange |
| Reverse-bend and Re. flat tests | Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end |
| Eddy Current Testing | Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System |
| Hydrostatic Testing | 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s . |
| Visual Inspection | After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections |
Applications
- Petrochemical Industry
- Chemical Industry
- Nuclear Power Plant Industry
- Oil and Gas Industry
- Research & Development
- Mega Projects & Defense & Development Industries
- Pulp & Paper Industry
