ASTM B564 Inconel 625 Flange - High Corrosion Resistance Nickel-Based Alloy Forged Flange for Harsh Environments

Brand Name : YUHONG

Model Number : ASTM B564 N06625

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Place of Origin : CHINA

MOQ : 1PC

Price : Negotiable

Payment Terms : T/T,L/C

Supply Ability : As Per Buyer's Require

Delivery Time : 7 Days

Packaging Details : Wooden Cases

Standard : ASTM B564, ASME B16.5

Grade : N06625 (Inconel 625), Nickel-Based Superalloy

Product Type : WN, SO, BL, PL Flange (Weld Neck, Slip-On, Blind, Plate)

Pressure Class : Class 150, 300, 600, 900, 1500

Size Range : 1/2” – 24” (DN15 – DN600), Customizable

Surface Treatment : Pickled & Passivated (P/P), Polished, Bright Annealed Finish

Contact Now

ASTM B564 N06625 Flange - Inconel 625 Nickel-Based Alloy Forged Flange
High-performance nickel-based superalloy forged flange manufactured in strict compliance with ASTM B564 and ASME B16.5 standards. N06625 (Inconel 625) is a premium nickel-chromium-molybdenum-niobium alloy featuring exceptional high-temperature strength, outstanding corrosion resistance against most acids, alkalis, chloride media, and seawater, along with excellent weldability and formability.
Chemical Composition Analysis (wt%)
Alloy Grade Ni Cr Mo Nb+Ta Fe C Si Mn P S
ASTM B564 N06625 (Inconel 625) 58.0 Min. 20.0-23.0 8.0-10.0 3.15-4.15 ≤ 5.0 ≤ 0.10 ≤ 0.50 ≤ 0.50 ≤ 0.015 ≤ 0.015
Typical Mechanical Properties
Mechanical Property Standard Requirement (Min.) Typical Value (Solution Annealed)
Yield Strength (Rp0.2), MPa ≥ 275 310-410
Tensile Strength (Rm), MPa ≥ 655 700-850
Elongation (A), % ≥ 30 35-45
Hardness (HB), Brinell ≤ 220 180-210
Impact Toughness (KV), J (20℃) ≥ 100 120-180
Max. Working Temperature 1093℃ (Long-term) 1093℃
Available Quality Tests
Test Type Standard
Chemical Composition Analysis (PMI) Spectrometer (XRF/OES), ASTM E1019
Tensile & Impact Test ASTM E8/E8M, ASTM A370, Charpy V-Notch
Hardness Test ASTM E10 (Brinell), ASTM E18 (Rockwell), Vickers
Solution Annealing Inspection ASTM B564, Metallographic Microstructure Test
Corrosion Resistance Test ASTM G48 (Pitting/Crevice), ASTM B117 (Salt Spray), ASTM A262

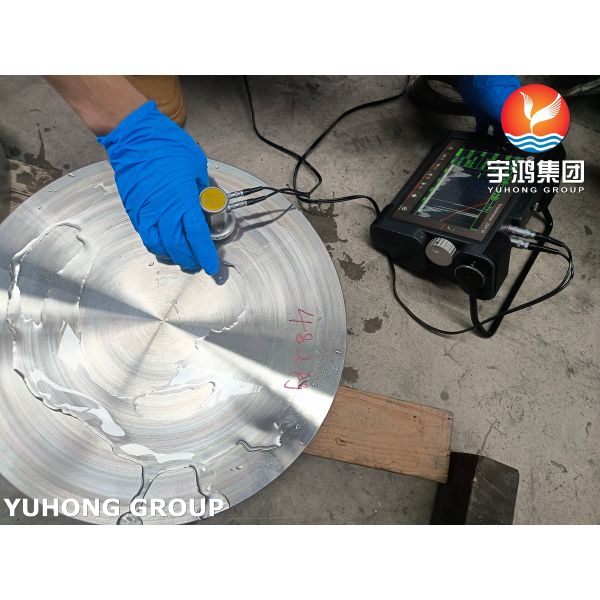

Non-Destructive Testing (NDT) UT (Ultrasonic), MT (Magnetic Particle), PT (Liquid Penetrant)
Hydrostatic/Pneumatic Pressure Test ASTM B564, ASME B16.5
Dimensional & Visual Inspection ASTM B564, ASME B16.5, CMM, Gauge Inspection
Material Test Certificate (MTC) EN 10204 3.1/3.2, ASTM B564
Product Application Scope
Industry Field Typical Applications
Aerospace Industry Aerospace engine pipelines, high-temperature exhaust system connections, aircraft hydraulic system flanges
Petrochemical & Refinery Corrosive process pipelines, hydrogenation reaction equipment flanges, refinery acid-base pipeline connections, catalyst system sealing flanges
Marine Engineering Offshore platform corrosion-resistant pipelines, seawater cooling system flanges, marine engine pipeline connections
Nuclear Power Industry Nuclear reactor auxiliary system flanges, high-temperature and high-pressure pipeline connections, radioactive material handling equipment flanges
Seawater Desalination Desalination plant pipelines, reverse osmosis system flanges, brine treatment equipment connections
Other High-Corrosion Fields Chemical processing equipment flanges, pharmaceutical corrosion-resistant pipelines, acid-base storage and transportation system connections, high-temperature furnace flanges
