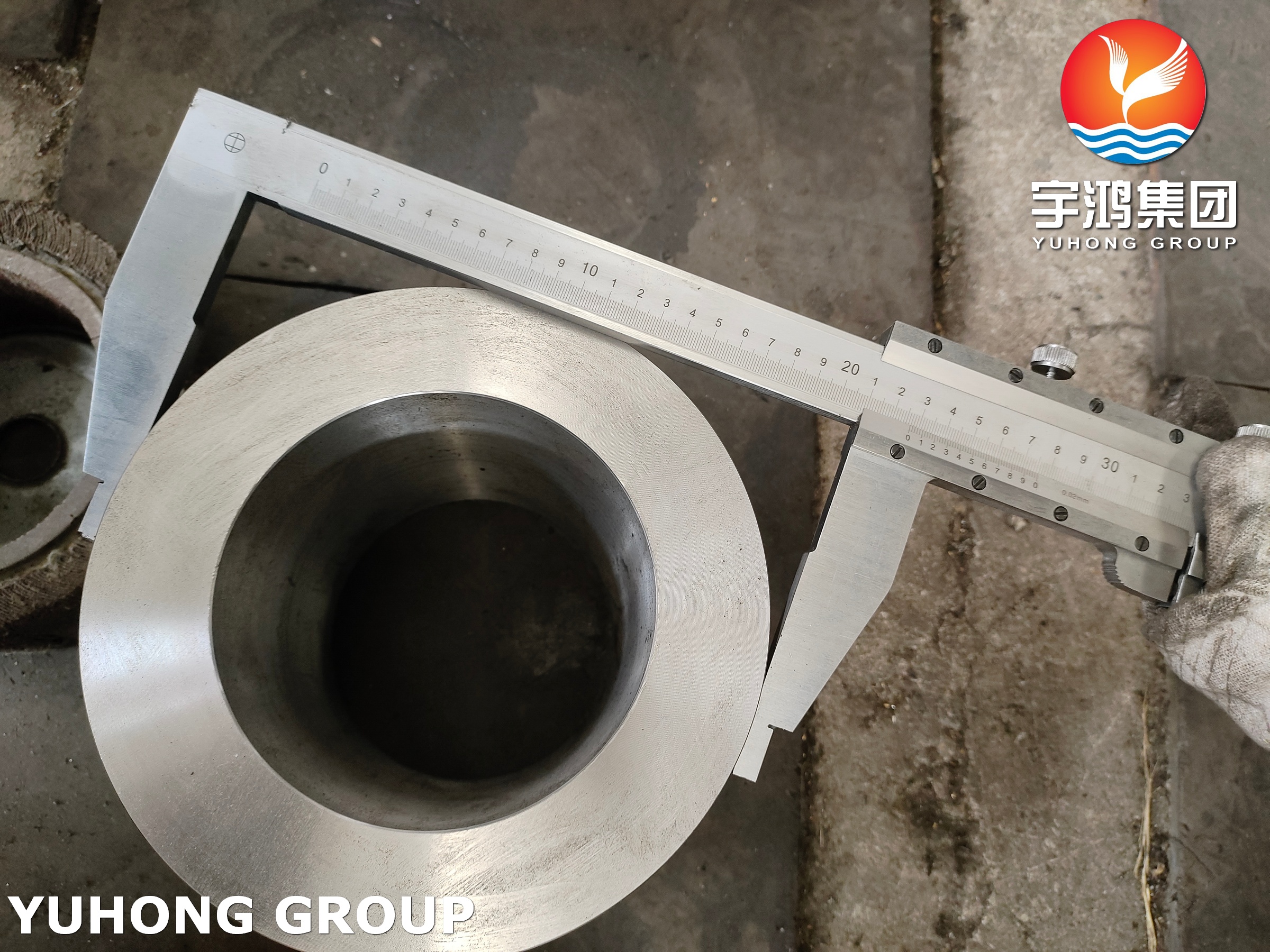

ASME SA105N carbon Steel Self Reinforced Nozzle For High Pressure Vessels And Piping Systems
ASME SA105N Carbon Steel Self-Reinforced Nozzle is a key connection component designed for high-pressure vessels and pipeline systems.
It is made of normalized forged steel (SA105N) and is self-reinforced by locally thickening the wall or optimizing the geometric profile, eliminating the need for traditional reinforcement plate welding.
It provides excellent performance in high-pressure vessels (such as reactors, boilers) and pipeline interfaces with a pressure of ≥5MPa.
Chemical Composition:
| Element | ASME SA105N (Carbon Steel) |
| Carbon (C) | 0.35% (max) |
| Manganese (Mn) | 0.60% - 1.00% |
| Phosphorus (P) | 0.035% (max) |
| Sulfur (S) | 0.035% (max) |
| Silicon (Si) | 0.10% - 0.40% |
| Chromium (Cr) | ≤ 0.30% |
| Nickel (Ni) | ≤ 0.25% |
Mechanical Properties:
| Property | ASME SA105N (Carbon Steel) |
| Tensile Strength | 485 MPa (min) |
| Yield Strength | 205 MPa (min) |
| Elongation | 20% (min) |
| Hardness | Brinell hardness: 119 (max) |
Application
Oil and gas: high-pressure separator inlet and outlet, oil and gas pipeline distribution outlet (Class 600~1500, sulfur corrosion resistance)
LNG receiving station low-temperature storage tank connection.
Chemical equipment: reactor/tower material inlet and outlet (≥5MPa, to avoid corrosive medium penetration in welds)
High-pressure heat exchanger tube/shell interface.
Drain valve interface, steam sampling port (below 550℃, water vapor erosion resistance)
Water supply regulating valve flange
Pressure vessel: hydraulic accumulator pipeline
