ASTM A240 F904L C207 SO FF Stainless Steel Flanges Bridas

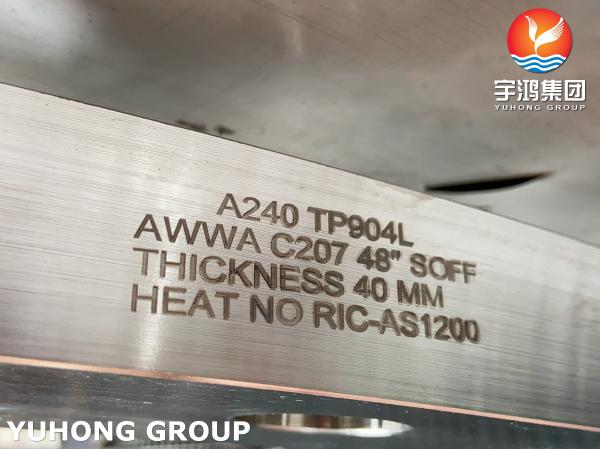

YUHONG Group offers ASTM A240 F904L AWWA C207 Slip-On FF Stainless Steel Flanges.
This specification covers chromium, chromium-nickel, and chromium-manganese-nickel stainless steel plate, sheet, and strip for pressure vessels and for general applications.
SS 904L alloy is a super austenitic stainless steel, which is used for various high corrosion resistance environment design. High content of chromium and nickel, plus molybdenum and copper as combined components,guaranteed the excellent corrosion resistance of the product able.And this alloy 904L was originally developed for corrosion resistance in dilute sulfuric acid. It has good corrosion resistance to other inorganic acids and most organic acids.Besides, it is easily welded and machined in standard shop fabrication practices.
Specification of ASTM A240 F904L
| Type | Slip-On;Welding-Neck;Blind;Thread;Plate;Socket-Weld,etc |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | 1/2″ to 48″NB |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Flange Delivery Condition | As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T, Machined |
| Flange Dimension Standard | Standard - ANSI - ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, and ANSI B16.48 |
| Flange Value Added Service | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
| Coating Flanges Face | Zinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint |
| Flange Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
Tests Required
Grain Size/Tension Tests/ Hardness Tests/ Corrosion Testing for Austenitic Grades/ Nondestructive Tests
Pipe Flange Equivalent Material
| STANDARD | WERKSTOFF NR. | UNS |
| SS 904L | 1.4539 | N08904 |
Chemical Composition of ASTM A240 F904L
| ELEMENT | COMPOSITION (%) |
| Carbon | 0.02 |
| Manganese | 2.00 |
| Phosphorus | 0.045 |
| Sulfur | 0.035 |
| Silicon | 1.00 |
| Nickel | 23.0-28.0 |
| Chromium | 19.0-23.0 |
| Molybdenum | 4.0-5.0 |
| Nitrogen | 0.1 |
| Copper | 1.00-2.00 |
Tensile and Hardness Requirements
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness Rockwell B |
| Psi – 71,000 , MPa – 490 | Psi – 31,000 , MPa – 220 | 35 % | 90 max |
Applications
Fabrication Industry
Pollution-Control Equipment
Natural Gas Industry
Pharmaceutical Industry-Processing Equipment
Pulp and Paper
Chemical Industry
Oil and Gas Well Piping
Nuclear Fuel Reprocessing
Acid Production
Water Pipeline Industry
Condenser, Heat Exchangers and Piping Systems
